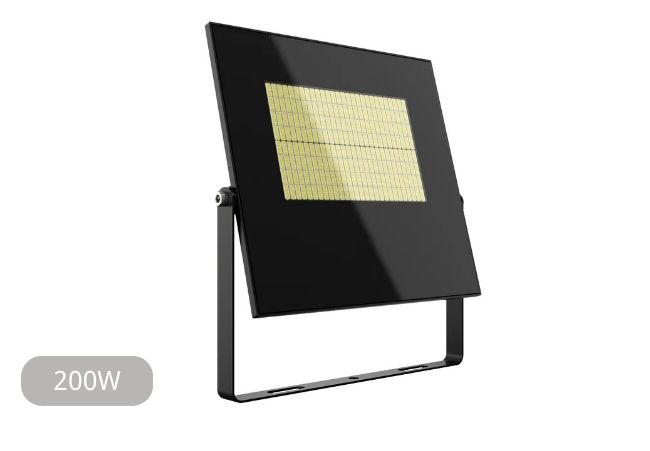

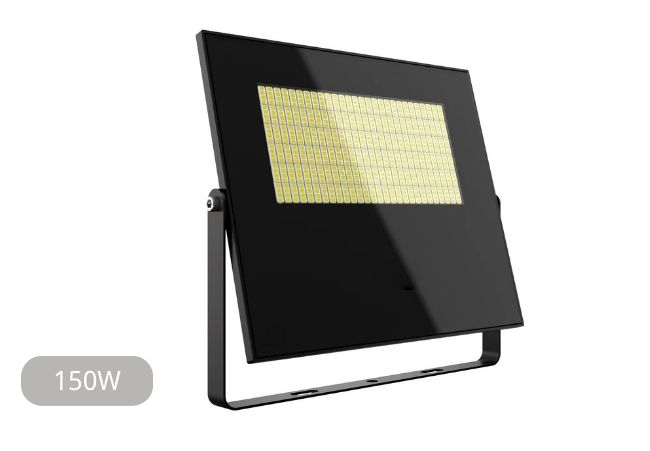

Slim LED Flood Light 30W-200W
Ultra-thin LCD floodlight features：
- Ultra-thin aviation aluminum die-casting body, the thickness of the lamp body is only 26mm.
- The new design of the patented LCD layout LED lamp beads, and PCB using an integrated encapsulation technology, high luminous efficacy, soft light is not blinding, high efficiency heat dissipation, longer and more stable life
- Built-in integrated high-efficiency multi-stage linear power supply. Harmonics <20%, full wattage program, the same level of product innovation design, power stability.
- The use of integrated body encapsulation technology, high-strength tempered glass panels, waterproof to IP67 level
- Thin and light volume, compact body, transportation costs significantly reduced
- To obtain CE.UL.CQC.EVC and other multi-country and multi-region certification.
- Appearance design patent! Product novelty, adapt to a variety of installation scenarios
Technical Parameters
| Mode | 30W | 50W | 100W | 150W | 200W |
| Rated Wattage | 30W | 50W | 100W | 150W | 200W |
| Rated Voltage | 200-240V | 200-240V | 200-240V | 200-240V | 200-240V |
| Power Factor | >0.97 | >0.97 | >0.97 | >0.97 | >0.97 |
| luminous flux [lm]+/-10% | 2700 | 5200 | 10600 | 16000 | 21100 |
| Type and number | 98 | 224 | 448 | 672 | 896 |
| Light angle +/-3° | 115 | 115 | 115 | 115 | 115 |
| Colour temperature | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K | 3000K/6000K |
| Lumen efficiency(Rated) | 80/90 | 95/105 | 95/105 | 95/105 | 95/105 |
| Colour rendering index (Ra) | >80 | >80 | >80 | >80 | >80 |
| 3000hours Lumen Maintenunce | 90% | 90% | 90% | 90% | 90% |
| Rated life （year ） | 3 | 3 | 3 | 3 | 3 |
| size（L*EW*H） | 165*139*26 | 185*160*26 | 262*210*26 | 283*239*26 | 315*285*26 |
| Net Weight | 380 | 485 | 1035 | 1385 | 1910 |
| Gross Weight | 425 | 535 | 1115 | 1480 | 2050 |
| Quantity of each carton | 40 | 40 | 20 | 10 | 10 |
| Total weight of each carton | 19 | 23.4 | 22.3 | 16.8 | 22.5 |
| Lightning Surge(V) | 3000 | 3000 | 3000 | 3000 | 3000 |
| Protection grade | IP67 | IP67 | IP67 | IP67 | IP67 |
